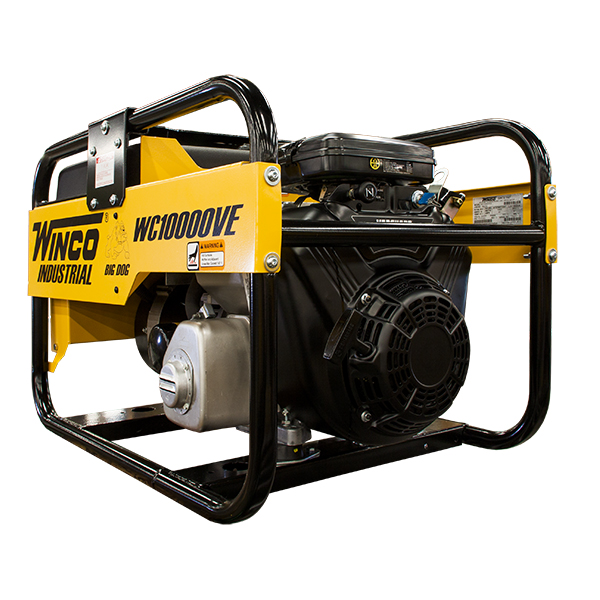

WC10000VE Winco Generator
The WINCO WC10000VE is a 40 amp continuous duty generator perfect for flat top roofing, concrete contractors, and general construction. The Briggs & Stratton Vanguard 18 HP engine is commercial grade and built to last for thousands of hours of use with proper maintenance. The generator and engine produce clean and smooth electrical power that is safe for sensitive electronics yet powerful enough to safely run compressors and other power tools. For flat top roofers this generator is large enough to run one robotic welder and one handheld welder.
Engine
- Durable Briggs & Stratton commercial engine
- Cast iron cylinder sleeves
- Fuel efficient design
- EPA and CARB approved
- Electric and Recoil start
Generator
- Clean power at less than 5% total harmonic distortion
- Steady voltage regulation is safe for sensitive electronics
- Heavy duty capacitors and diodes
- 100% copper windings
Additional Features
- Large 7 gallon fuel tank
- Oversized full power plug (NEMA 14-60) matches other WINCO Big Dog models
- Industrial Square D mainline circuit breaker
- Industry leading 1/60th second reaction time
- Visi-Trip indicator
- 30 amp receptacle is independently GFCI protected from NEMA 5-20 receptacles. This helps troubleshooting by isolating the ground fault to only interrupt the actual circuit that is tripping.
- Conserv-R automatic idle control reduces noise and extends engine life by idling engine speed under no load (electric start battery must be installed)
- Made in USA
- Full commercial warranty
- 3 years engine
- 2 years generator
| Max Power Rating | 10500 | |
| Cont. Power Rating | 9600 | |
| Voltage | 120/240 Volt 1 PH | |
| Cont. Current Rating | 80/40 amps | |
| Motor Starting Ability (Code G) | 5 hp | |
| Engine Make/Model | B&S Vanguard | |
| Displacement/Type | 570 cc/OHV | |
| Cylinder Sleeves | Cast Iron | |
| Conserv-R Automatic Idle Control | Included | |
| Fuel Type | Gasoline | |
| Starting System | Recoil/Electric | |
| Fuel Tank Capacity | 7 gal | |
| Low Oil Protection | Standard | |
| Running Time-Full Load | 4.3 hrs | |
| Running Time-Half Load | ||
| Hour Meter | Included | |
| 120 Volt Receptacles | 4x20A NEMA 5-20 GFCI | |
| 240 Volt Receptacles | 1x30A Locking NEMA L6-30 GFCI | |
| 120/240 Volt Receptacles | 1x60A NEMA 14-60 | |
| Switchless Full Power | N/A | |
| Dimensions | 33.7x23x22.1 in | |
| Shipping Weight | 306 lbs | |
| Warranty (Generator/Engine) | 2 yrs/3 yrs | |
| DB Rating @ 7 Meters | 78 dba | |
| CSA Approved | No | |
| CARB Approved | Yes | |
| Country Of Origin | USA | |
