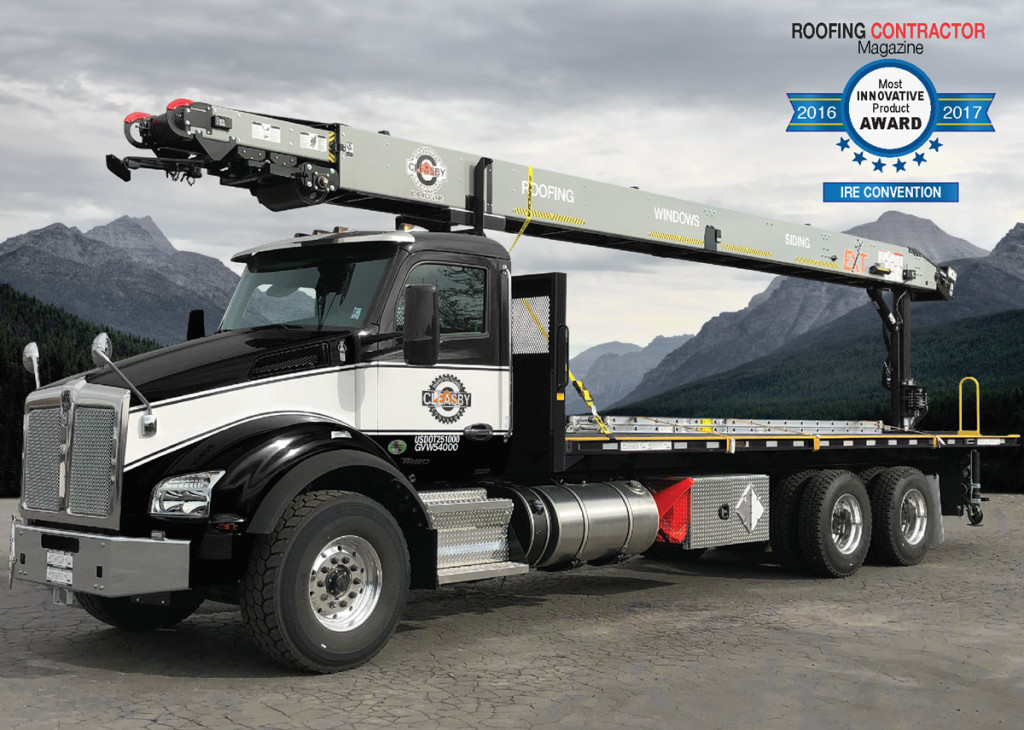

EXT-52-Travel

EXT-52 ROOF CONVEYOR

The EXT-52 conveyor is one of its kind.  The conveyor has a 2-stage telescoping feature that allows the conveyor to extend and retract from 35 feet to 52 feet. The 35 foot retracted length is short enough to mount the conveyor unit on a standard 24 ft. Truck bed. This makes the EXT-52 the most versatile roof conveyor in the market.

EXT-52 Benefits

  • Extended Length of 52 feet
  • Retracted Length of 35 feet
  • Reach high roofs in tight spots
  • Belt is operational at any stage between 35 and 52 feet
  • Equipped with Safety Check System

EXT-52 CONVEYOR FEATURES

Screenshot 2017-11-09 19.32.37

SPECIFICATIONS

EXT-52 Roof Conveyor Dimensions

Conveyor

  • Conveyor Extended Length: 52 feet
  • Conveyor Retracted Length: 35 feet
  • Maximum Discharge height: 50 feet
  • Belt width: 18 inches
  • Cleat height: 2-1/2 inches

Turntable and Truck

  • Minimum Truck Bed Length: 24 feet
  • Load Clearance on Truck: 5 feet 4 inches
  • 360 degree hydraulic conveyor boom rotation
  • 5 function control valve

Weights

EXT-52: 2,398 lbs.
XHDRTH-4000: 1,676 lbs.
Outriggers: 760 lbs.

XHDRTH-4000 HYDRAULIC TURNTABLE

XHDRTH4000-Turntable

The XHDRTH-4000 Turntable was designed specifically for the EXT-52 Conveyor. The Heavy Duty Turntable’s post lifts up to allow a load clearance of 64 inches. The post will also lower down to a load height of 30 inches.

EXT-SERIES TRUCK OUTRIGGERS

MANUALS AND DOWNLOADS

EXT-52 Series Downloads

EXT-52 Brochure
